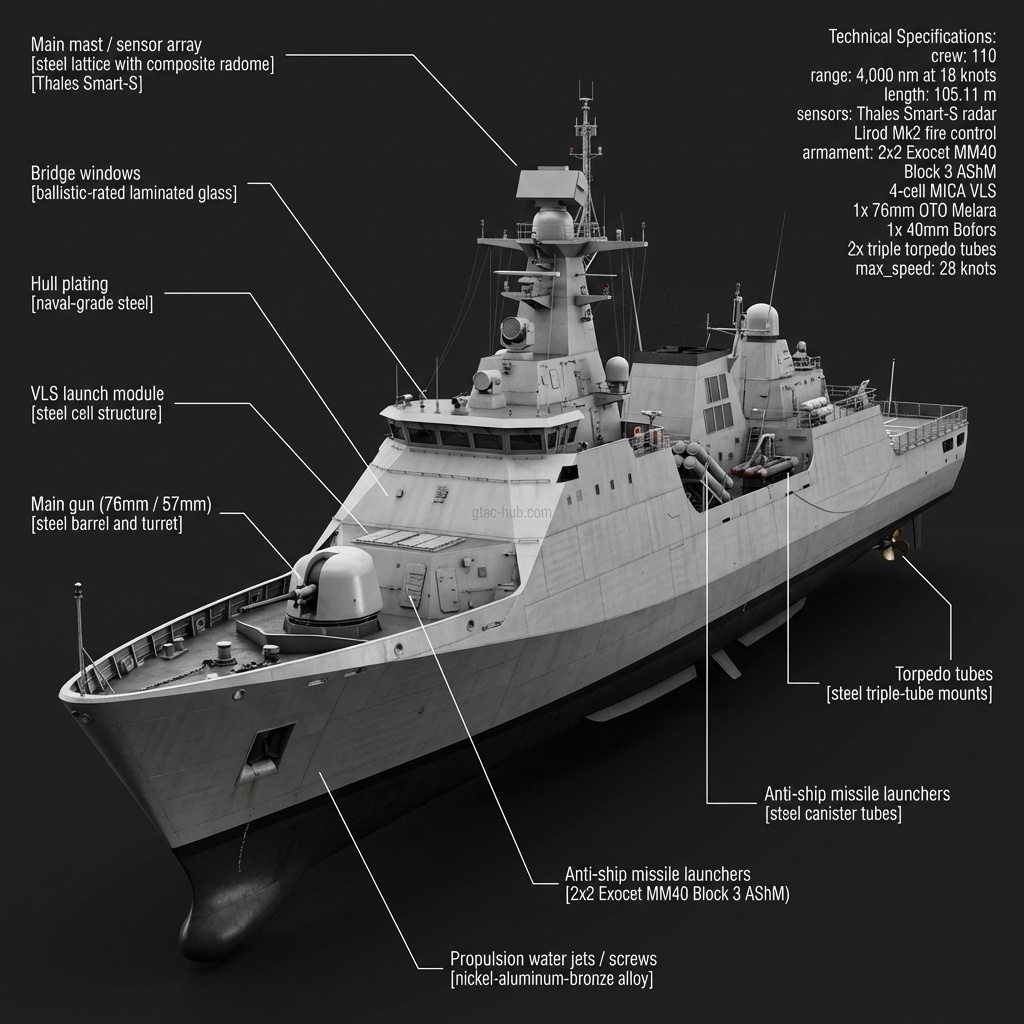

Diponegoro Class Corvette (SIGMA 10514)
Type: Corvette
Domain: sea
Country of Origin: Netherlands
Manufacturer: Damen Schelde Naval Shipbuilding
First Deployed: 2007
Overview
The Diponegoro class (SIGMA 10514 design) represents the most capable surface combatants in the Indonesian Navy. Built by Damen Schelde in the Netherlands with significant technology transfer, they provide a modern platform with Exocet anti-ship missiles, MICA vertical launch air defense, and Thales fire control systems. Four ships were delivered, with subsequent SIGMA 10514P frigates being built domestically in Indonesia.
Technical Specifications
| crew | 110 |
|---|---|
| range | 4,000 nm at 18 knots |
| length | 105.11 m |
| sensors | Thales Smart-S radar, Lirod Mk2 fire control |
| armament | 2x2 Exocet MM40 Block 3 AShM, 4-cell MICA VLS, 1x 76mm OTO Melara, 1x 40mm Bofors, 2x triple torpedo tubes |
| max_speed | 28 knots |
| helicopter | 1x NAS-332 Super Puma or AS-565 Panther |
| displacement | 1,692 tonnes |
Operators
- Indonesia
