Type 03 Chu-SAM Kai (Improved)

Type 03 Chu-SAM Kai (Improved)

Type: air_defense

Domain: land

Country of Origin: Japan

Manufacturer: Japanese Defense Industry

First Deployed: 2003

Overview

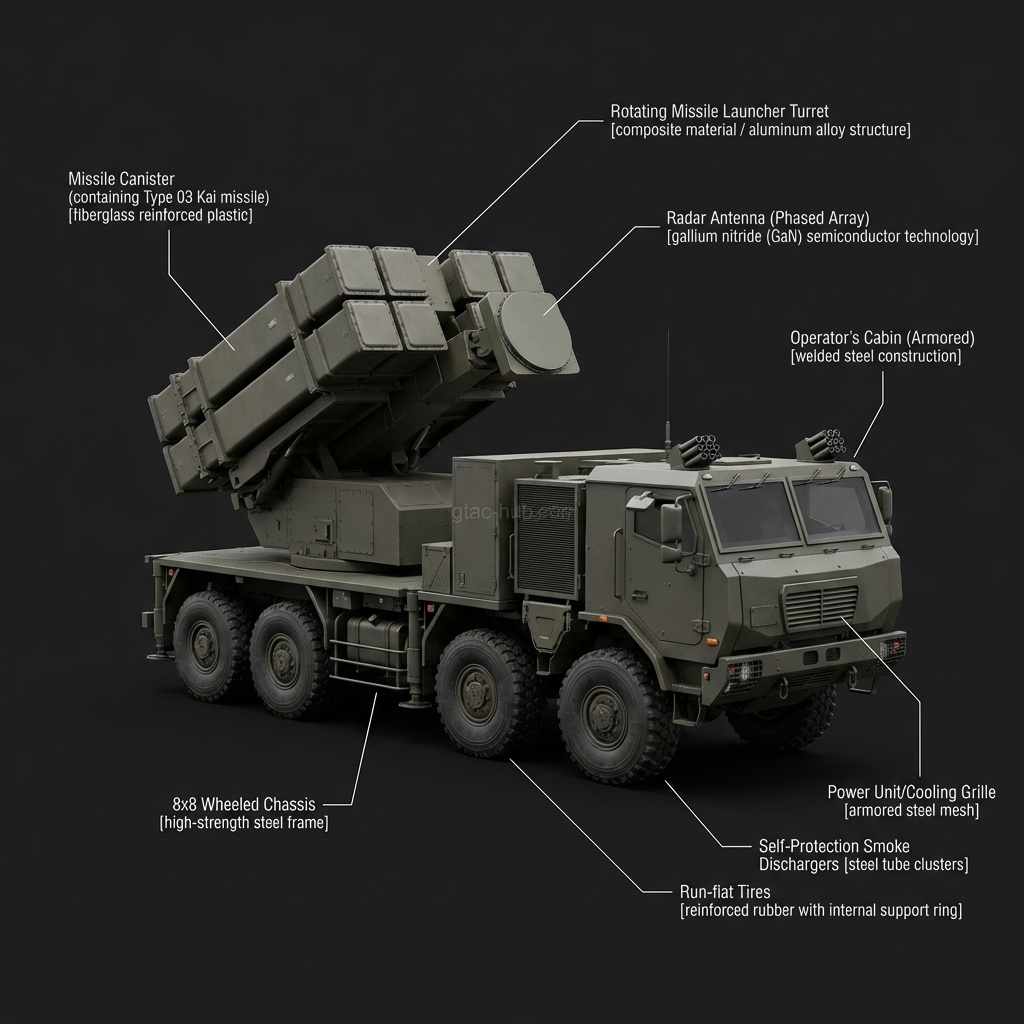

Improved variant of Japan's indigenous medium-range surface-to-air missile system, providing area air defence for the Japan Air Self-Defense Force against aircraft, cruise missiles, and tactical ballistic missiles. The Chu-SAM (Medium-range SAM) Kai features an upgraded active radar homing seeker with improved ECCM, extended range compared to the original Type 03 (estimated 50+ km), enhanced maneuverability for engaging agile targets, and an improved fragmentation warhead with proximity fuze. The associated fire control system includes a multifunction phased array radar for search, tracking, and missile guidance. Each battery consists of a radar vehicle, engagement control vehicle, and multiple launcher vehicles with 6 missile canisters each. The Type 03 Chu-SAM Kai serves as the medium-range layer of Japan's integrated air defence, positioned between the Patriot PAC-3 (long-range/BMD) and short-range systems. Deployed to protect key military installations and urban areas.

Technical Specifications

typeMedium-Range Surface-to-Air Missile System
range~50 km
altitude10+ km
guidanceActive radar homing
platformVehicle-mounted mobile launcher
