L-UMTAS
Type: Anti-Tank Missile
Domain: land
Country of Origin: Türkiye
Manufacturer: Roketsan
First Deployed: 2015
Overview
L-UMTAS is the semi-active laser homing variant of the UMTAS anti-tank missile. It offers lower cost while maintaining equivalent range and warhead performance, requiring laser designation from the launch platform or forward observer.

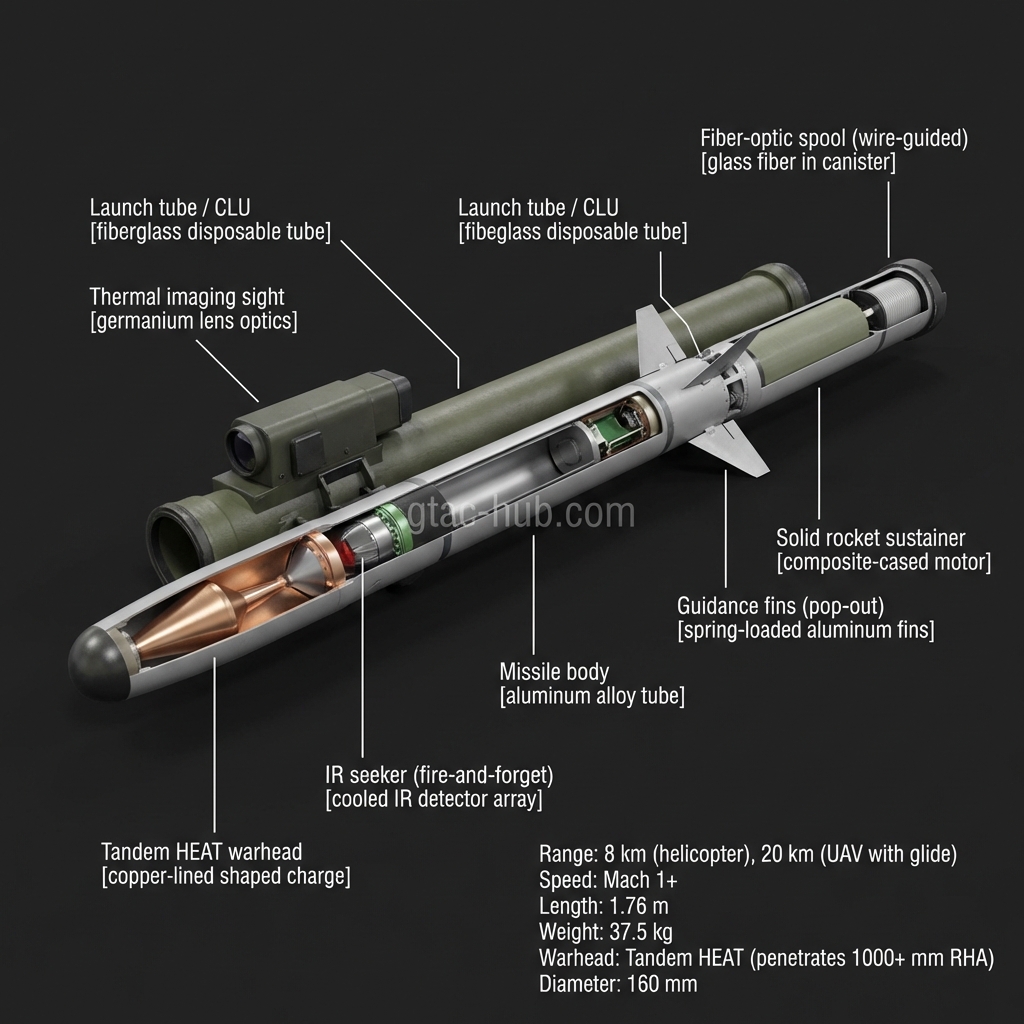

Technical Specifications
| range | 8 km (helicopter), 20 km (UAV with glide) |
|---|---|
| speed | Mach 1+ |
| length | 1.76 m |
| weight | 37.5 kg |
| warhead | Tandem HEAT (penetrates 1000+ mm RHA) |
| diameter | 160 mm |
| guidance | Semi-active laser homing (SAL) |
| platforms | T129 ATAK, Akinci UCAV, ground vehicles |
| propulsion | Solid-fuel rocket |
Operators
- Türkiye
